wireless controller



1.Power supply:  AC220±20%

2.Operating Temperature Range:  -10℃~60℃

3.Humidity Requirements for Controller Usage: 5-90%

4.Storage temperature range:  -20℃~60℃

5.Communication circuit: PLC(Power Line Communication)

6.Overall dimensions: 86mm*86mm*11mm (wall-exposed part)

7.Mounting hole distance: 60mm

8.WIFI module:

·802.11 b/g/n

·Data rate up to 150 Mbps in 802.11n mode

·Frame aggregation (TX/RX A-MPDU, RX A-MSDU)

·0.4 us guard interval

·Operating channel center frequency range: 2412 ~ 2484 MHZ

Color Wired Controller


1.Power supply: DC12±20%

2.Operating Temperature Range: -10℃~60℃

3.Humidity Requirements for Controller Usage: 5-90%

4.Storage temperature range: -20℃~60℃

5.Communication circuit: RS485, Modbus communication protocol

6.Rated power: 3W

7.Overall dimensions: 86mm*86mm*10mm (wall-exposed part)

8.Mounting hole distance: 60mm

9.WIFI module:

·802.11 b/g/n

·Data rate up to 150 Mbps in 802.11n mode

·Frame aggregation (TX/RX A-MPDU, RX A-MSDU)

·0.4 us guard interval

·Operating channel center frequency range: 2412 ~ 2484 MHZ


Full-touch wired controller


1.Power supply: DC12±20%

2.Operating Temperature Range: -10℃~60℃

3.Humidity Requirements for Controller Usage: 5-90%

4.Storage temperature range:  -20℃~60℃

5.Communication circuit:  RS485, Modbus communication protocol

6.Rated power: 3W

7.Overall dimensions: 86mm*86mm*11mm (wall-exposed part)

8.Mounting hole distance: 60mm

9.WIFI module:

·802.11 b/g/n

·Data rate up to 150 Mbps in 802.11n mode

·Frame aggregation (TX/RX A-MPDU, RX A-MSDU)

·0.4 us guard interval

·Operating channel center frequency range: 2412 ~ 2484 MHZ


Segment Display Wired Controller


1.Power supply: DC12±20%

2.Operating Temperature Range: -10℃~60℃

3.Humidity Requirements for Controller Usage: 5-90%

4.Storage temperature range: -20℃~60℃

5.Communication circuit: RS485, Modbus communication protocol

6.Rated power: 3W

7.Overall dimensions: 86mm*86mm*11mm (wall-exposed part)

8.Mounting hole distance: 60mm

9.WIFI module:

·802.11 b/g/n

·Data rate up to 150 Mbps in 802.11n mode

·Frame aggregation (TX/RX A-MPDU, RX A-MSDU)

·0.4 us guard interval

·Operating channel center frequency range: 2412 ~ 2484 MHZ


Centralized Controller


1.Temperature display accuracy: 0.1 ℃

2.Temperature setting range: -20~60 ℃

3.Operating temperature: -20~65 ℃

4.Operating humidity: 5~90%

5.Power supply: DC12V-24V±20%

6.Shell material: Middle frame: ABS+PC plastic / Aluminum alloy;

Back cover: ABS+PC plastic;

Touch screen: Tempered glass

7.Overall dimensions: 175mm*110mm*12.8 mm (wall-exposed part)

8.Mounting hole distance: 60mm


Mainboard for inverter modularzed units


1.Power supply: AC220±15%

2.Operating Temperature Range: -30℃~70℃

3.Humidity Requirements for Controller Usage: 50/60Hz

4.Storage temperature range: -30℃~70℃;

5.Digital Output: 16 channels;

6.Digital Input: 14 channels;

7.Analog Output: 4 channels 0-10V output;

8.Analog Input: 26 channels (2 channels 0-10V input, 2 channels 4-20mA input);

9.Expansion Valve: 6 channels;

10.Communication Interface: 3 channels RS485.

Control solution for inverter water-sourced heat pumps


1.Power supply: AC220±15%

2.Operating Temperature Range: -30℃~70℃;

3.Humidity Requirements for Controller Usage: 5-95%

4.Storage temperature range: -30℃~70℃;

5.Digital Output: 8 channels;

6.Digital Input: 7 channels;

7.Analog Input: 12 channels;

8.Expansion Valve: 2 channels;

9.Communication Interface: 3 channels RS485.


Mainboard for outdoor VRF units


1.Power supply: AC220±15%

2.Operating Temperature Range: -30℃~70℃;

3.Humidity Requirements for Controller Usage: 5-95%

4.Storage temperature range: -30℃~70℃;

5.Digital Output: 14 channels;

6.Digital Input: 7 channels;

7.Analog Input: 16 channels;

8.Expansion Valve: 3 channels;

9.Communication Interface: 3 channels RS485.



Mainboard for VRF indoor units


1.Power supply: AC220±15%

2.Operating Temperature Range: -30℃~70℃;

3.Humidity Requirements for Controller Usage: 5-95%

4.Storage temperature range: -30℃~70℃;

5.Digital Output: 5 channels;

6.Digital Input: 2 channels;

7.Analog Input: 4 channels;

8.Expansion Valve: 1 channels;

9.Communication Interface: 2 channels RS485.



Mainboard for inverter direct expansion

units


1.Power supply: AC220±15%;

2.Operating Temperature Range: -30℃~70℃;

3.Humidity Requirements for Controller Usage: 5-95%;

4.Storage temperature range: -30℃~70℃;

5.Digital Output: 16 channels;

6.Digital Input: 14 channels;

7.Analog Output: 4 channels 0-10V output;

8.Analog Input: 26 channels (2 channels 0-10V input, 2 channels 4-20mA input);

9.Expansion Valve: 6 channels;

10.Communication Interface: 3 channels RS485.


Mainboard for inverter air-sourced

heat pumps



1.Power supply: AC220±15%

2.Operating Temperature Range: -30℃~70℃;

3.Humidity Requirements for Controller Usage: 5-95%

4.Storage temperature range: -30℃~70℃;

5.Digital Output: 8 channels;

6.Digital Input: 7 channels;

7.Analog Input: 12 channels;

8.Expansion Valve: 2 channels;

9.Communication Interface: 3 channels RS485.




Mainboard for inverter refrigeration

units


1.Power supply: AC220±15%

2.Operating Temperature Range: -30℃~70℃;

3.Humidity Requirements for Controller Usage: 5-95%

4.Storage temperature range: -30℃~70℃;

5.Digital Output: 11 channels;

6.Digital Input: 7 channels;

7.Analog Input: 13 channels;

8.Expansion Valve: 2 channels;

9.Communication Interface: 3 channels RS485.


Mainboard for inverter heat recovery

units


1.Power supply: AC220±15%

2.Operating Temperature Range: -30℃~70℃;

3.Humidity Requirements for Controller Usage: 5-95%

4.Storage temperature range: -30℃~70℃;

5.Digital Output: 8 channels;

6.Digital Input: 7 channels;

7.Analog Input: 12 channels;

8.Expansion Valve: 2 channels;

9.Communication Interface: 3 channels RS485.


Mainboard for inverter dehumidifiers


1.Power supply: AC220±15%

2.Operating Temperature Range: -30℃~70℃;

3.Humidity Requirements for Controller Usage: 5-95%

4.Storage temperature range: -30℃~70℃;

5.Digital Output: 6 channels;

6.Digital Input: 7 channels;

7.Analog Input: 10 channels;

8.Expansion Valve: 2 channels;

9.Communication Interface: 2 channels RS485,2 channels UART.


Single-Phase 6HP Compressor drive board


Rated Operating Voltage (V): Single-phase AC220VAC

Input Voltage Range (V): 175-265VAC

Power Input Frequency (Hz): 50/60±5Hz

Maximum Allowable Input Current (A): 30A (RMS)

Maximum Allowable Output Current (A): 25A (RMS)

Motor Control Mode: Sensorless Vector Control

Motor Speed Range: 600~6000rpm

Motor Operating Frequency Fluctuation: ±1Hz

DC Bus Voltage: 380±5V @ PFC On

Maximum Operating Efficiency: >95%

Input Power Factor: 0.98 @ PFC On

Communication Method: 485/UART

Operating Environment：

Storage Temperature Range: -30°C~70°C

Operating Temperature Range: -30°C~60°C

Relative Humidity: 10%~95% (non-condensing)

Maximum Altitude: ≤2000m


Three-Phase 6HP Compressor drive board


Power Supply Specifications

Rated Voltage: Three-Phase AC 380V/50Hz

Operating Voltage Range: 320V~460V

Maximum Input Power: 8kW

Maximum Input Current: 14A (RMS)

Maximum Output Current: 16A (RMS)

Speed Control Parameters

Speed Regulation Range: 15Hz~100Hz (900rpm~6000rpm)

Speed Control Accuracy: ±1Hz

Control Method: Sensorless Vector Control

Compatible Compressors

Compatible with Hitachi, Panasonic, GMCC, Highly and

other leading brands

Thermal Management

Cooling Method: Forced Air Cooling / Refrigerant Heat Dissipation

Environmental Specifications

Storage Temperature Range: -30°C~70°C

Operating Temperature Range: -30°C~60°C

Relative Humidity: 10%~95% (non-condensing)

Maximum Altitude: ≤2000m


Three-Phase 10HP Compressor drive board


Power Supply Specifications

Rated Voltage: Three-Phase AC 380V/50Hz

Operating Voltage Range: 320V~460V

Maximum Input Power: 14kW

Maximum Input Current: 25A (RMS)

Maximum Output Current: 25A (RMS)

Speed Control Parameters

Speed Regulation Range: 15Hz~100Hz (900rpm~6000rpm)

Speed Control Accuracy: ±1Hz

Control Method: Sensorless Vector Control

Compatible Compressors

Compatible with Hitachi, Panasonic, Emerson and other leading brands

Thermal Management

Cooling Method: Forced Air Cooling

Environmental Specifications

Storage Temperature Range: -30°C~70°C

Operating Temperature Range: -30°C~60°C

Relative Humidity: 10%~95% (non-condensing)

Maximum Altitude: ≤2000m


Three-Phase  16HP Compressor drive board


Power Supply

Rated Voltage: Three-Phase AC 380V/50Hz

Operating Voltage Range: 320V~460V

Maximum Input Power: 17kW

Maximum Input Current: 30A (RMS)

Maximum Output Current: 31A (RMS)

Speed Control

Frequency Range: 15Hz~120Hz (900rpm~7200rpm)

Speed Accuracy: ±1Hz

Control Method: Sensorless Vector Control

Compatible Compressors

Compatible with Hitachi, Panasonic and other brands

Cooling System

Cooling Method: Forced Air Cooling / Refrigerant Heat Dissipation

Environmental Specifications

Storage Temperature: -30°C~70°C

Operating Temperature: -30°C~60°C

Humidity: 10%~95% (non-condensing)

Altitude: ≤2000m

Three-Phase 20HP Compressor drive board


Power Supply

Rated Voltage: Three-Phase AC 380V/50Hz

Operating Voltage Range: 320V~460V

Maximum Input Power: 22kW

Maximum Input Current: 40A (RMS)

Maximum Output Current: 40A (RMS)

Speed Control

Speed Range: 15Hz~120Hz (900rpm~7200rpm)

Speed Accuracy: ±1Hz

Control Method: Sensorless Vector Control

Compatible Compressors

Compatible with Hitachi, Panasonic, Danfoss, GMCC and other brands

Cooling System

Cooling Method: Forced Air Cooling / Refrigerant Heat Dissipation

Environmental Conditions

Storage Temperature: -30°C~70°C

Operating Temperature: -30°C~60°C

Humidity Range: 10%~95% (non-condensing)

Altitude: ≤2000m

Three-Phase  25HP Compressor drive board


Power Supply Specifications

Rated Voltage: Three-Phase AC 380V/50Hz

Operating Voltage Range: 320V~460V

Maximum Input Power: 30kW

Maximum Input Current: 49A (RMS)

Maximum Output Current: 50A (RMS)

Speed Control Parameters

Speed Regulation Range: 15Hz~120Hz (900rpm~7200rpm)

Speed Control Accuracy: ±1Hz

Control Method: Sensorless Vector Control

Compatible Compressors

Compatible with Hitachi, Panasonic, Danfoss and other leading brands

Thermal Management

Cooling Method: Forced Air Cooling / Refrigerant Heat Dissipation

Environmental Specifications

Storage Temperature Range: -30°C~70°C

Operating Temperature Range: -30°C~60°C

Relative Humidity: 10%~95% (non-condensing)

Maximum Altitude: ≤2000m

Three-Phase  30HP Compressor drive board


Power Supply Specifications

Rated Voltage: Three-Phase AC 380V/50Hz

Operating Voltage Range: 320V~460V

Maximum Input Power: 40kW

Maximum Input Current: 70A (RMS)

Maximum Output Current: 68A (RMS)

Speed Control Parameters

Speed Regulation Range: 15Hz~120Hz (900rpm~7200rpm)

Speed Control Accuracy: ±1Hz

Control Method: Sensorless Vector Control

Compatible Compressors

Compatible with Hitachi, GMCC and other leading brands

Thermal Management

Cooling Method: Forced Air Cooling / Refrigerant Heat Dissipation

Environmental Specifications

Storage Temperature Range: -30°C~70°C

Operating Temperature Range: -30°C~60°C

Relative Humidity: 10%~95% (non-condensing)

Maximum Altitude: ≤2000m

Single-phase 1kW DC fan drive controller


Rated power supply: Single-phase AC 220V/50Hz

Operating voltage range: 187V~264V

Maximum input power: 1kW

Maximum input current: 5A (RMS)

Maximum output current: 4A (RMS)

Speed regulation range: 75~1050rpm

Speed regulation accuracy: ±30 rpm

Control method: With position sensor detection control

Matching motor model: Panasonic motor DMSBA01GX01 and

similar models

Cooling method: Forced air cooling

Power module: Mitsubishi IPM module

Storage temperature range: -30℃~70℃

Operating ambient temperature range: -25℃~60℃

Operating humidity range: 10%~95% (no frosting and condensation)

Altitude: Less than 2000 meters


Three-Phase  2.2kW DC fan drive controller


Rated power supply: Three-phase 380V/50Hz

Operating voltage range: 380V±15%

Maximum input power: 2.2kW

Maximum input current: 6A (RMS)

Maximum output current: 5A (RMS)

Speed regulation range: 300-900rpm

Speed regulation accuracy: ±30 rpm

Control method: Sensorless vector control

Matching motor model: DC variable frequency fan

Cooling method: Forced air cooling

Storage temperature range: -30℃~70℃

Operating ambient temperature range: -25℃~60℃

Operating humidity range: 10%~95% (no frosting and condensation)

Altitude: Less than 2000 meters

BAS gateway


1. Interface: RS485, Ethernet,USB,SIM,TF, DI, DO, etc.

2. Operating voltage: DC 9~24V；

3. power consumption: 650mA@24V；

4. Wireless network: GSM/GPRS/EDGE/CDMA2000/

EVDO/WCDMA/TD-SCDMA/

LTE-FDD/LTE-TDDIPv4/

TCP/UDP；

5. Network protocol: IPv4/TCP/UDP；

6. Hardware upgrade: OTA；

Operating Environment:

Storage Temperature Range: -40°C~70°C

Operating Temperature Range: -40°C~70°C

Relative Humidity: 10%~95% (non-condensing)


4G gateway


1. Interface: RS485;2400~115200bps.

2. Operating voltage: DC 12V±20%;

3. power consumption: 650mA@12V；

4. Wireless network: LTE-FDD/LTE-TDD；

5. Network protocol: IPv4/TCP, multi-link；

6. Hardware upgrade: OTA；

Operating Environment:

Storage Temperature Range: -40°C~70°C

Operating Temperature Range: -30°C~70°C

Relative Humidity: 10%~95% (non-condensing)

4G integrate gateway


1. Interface: RS485;2400~115200bps.

2. Operating voltage: DC 12V±20%;

3. power consumption: 650mA@12V；

4. Wireless network: LTE-FDD/LTE-TDD；

5. Network protocol: IPv4/TCP, multi-link；

6. Hardware upgrade: OTA；

Operating Environment:

Storage Temperature Range: -40°C~70°C

Operating Temperature Range: -30°C~70°C

Relative Humidity: 10%~95% (non-condensing)

4G Wired controller


1.Power supply: DC12±20%

2.Operating Temperature Range:  -10℃~60℃

3.Humidity Requirements for Controller Usage: 5-90%

4.Storage temperature range:  -20℃~60℃

5.Communication circuit: RS485, Modbus communication protocol

6.Rated power: 3W

7.Overall dimensions: 86mm*86mm*10mm (wall-exposed part)

8.Mounting hole distance: 60mm

9.Wireless network: LTE-FDD/LTE-TDD; WIFI.


Contact us

Fill in and submit the following information and our staff will contact you within 2 working days

  • Name:

  • Company:

  • Email:

  • Phone:

  • Wechat:

  • WhatsApp:

  • Country:

  • Address:

  • Submit

Control Solution for Inverter VRF Unit
Product Linkage
with Other
Devices

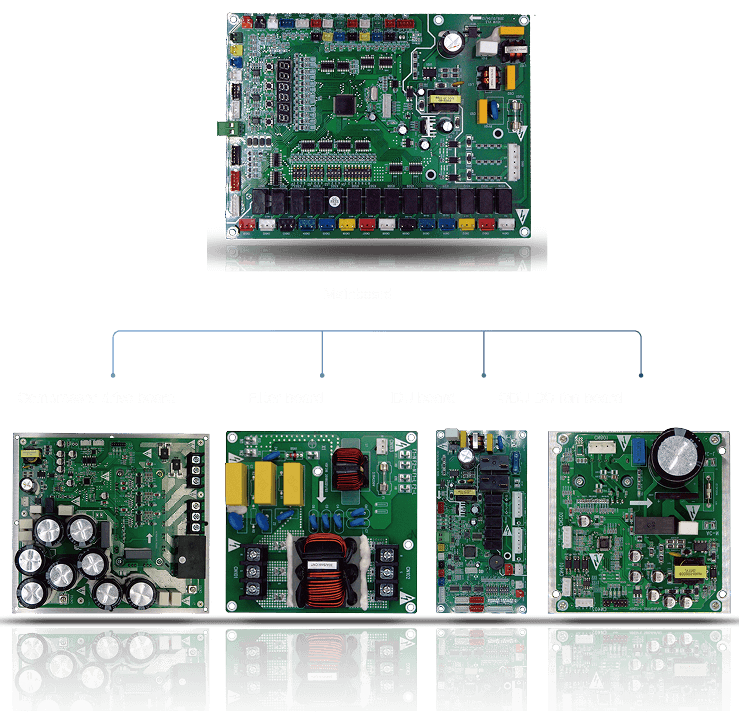

Multi-split system mainboard

Wired controller

Drive controller

Multi-split system internal board

Outdoor DC fan board

Control solution for
Inverter VRF Unit
Empower VRF System
Accelerate VRF R&D, driven by Big Data and Rigorous Validation.
Self-Developed Hardware & Software
Fully self-developed controller, debugging software, and remote monitoring platform.
Automatic Addressing
Non-polar 2-core communication, supporting up to 80 indoor units.
Remote Management
Enable OTA updates, cost-effective remote diagnostics.
Smart Billing
Equipped with the intelligent household billing system, and intelligent building gateway interface.
Multi-Type Indoor Units
Supports diverse indoor units: ducted, cassette, wall-mounted, and more.

Interface Resources

NO. Compatible Fan DO AI Electronic Expansion Valve DI Communication Interface Other
IDU DC / AC 14 16 3 7 3 RS485 One 8-bit switch
Three 4-bit switches
ODU DC / AC 5 4 1 2 2 RS485 One 4-bit switch
One 5-bit switch

Drive Controller (5HP-30HP) Technical Specifications

HP rating 220V-6HP 380V-6HP 380V-10HP 380V-12HP 380V-16HP 380V-25HP 380V-30HP
Compressor Power Capacity 7kW 7kW 11kW 13kW 17kW 26kW 30kW

Note: the power ratings above are tested under the condition that the main unit meets the cooling requirement of the inverter, and are for reference only.

  1. 180-degree sine wave position sensorless vector control with low torque fluctuation
  2. PFC control technology, with a switching frequency up to 40KHz
  3. Selected well-known brand components, including TC2000 DSP control chip, Infineon and Fuji power modules etc.
  4. Protections for current, voltage, and temperature faults
  5. Compressor operating frequency range: 10~100Hz
  6. Ultra-wide input voltage range
图片展示

Products





Solutions

About Us

Contact Us

 Get in touch

图片展示

products

Solutions

About Us

Contact Us

Get in touch

Add WeChat friend to learn more about the product
Use Enterprise WeChat
"Scan" to join the group chat
Copy success!
Add WeChat friend to learn more about the product
I see.
