wireless controller



1.Power supply:  AC220±20%

2.Operating Temperature Range:  -10℃~60℃

3.Humidity Requirements for Controller Usage: 5-90%

4.Storage temperature range:  -20℃~60℃

5.Communication circuit: PLC(Power Line Communication)

6.Overall dimensions: 86mm*86mm*11mm (wall-exposed part)

7.Mounting hole distance: 60mm

8.WIFI module:

·802.11 b/g/n

·Data rate up to 150 Mbps in 802.11n mode

·Frame aggregation (TX/RX A-MPDU, RX A-MSDU)

·0.4 us guard interval

·Operating channel center frequency range: 2412 ~ 2484 MHZ

Color Wired Controller


1.Power supply: DC12±20%

2.Operating Temperature Range: -10℃~60℃

3.Humidity Requirements for Controller Usage: 5-90%

4.Storage temperature range: -20℃~60℃

5.Communication circuit: RS485, Modbus communication protocol

6.Rated power: 3W

7.Overall dimensions: 86mm*86mm*10mm (wall-exposed part)

8.Mounting hole distance: 60mm

9.WIFI module:

·802.11 b/g/n

·Data rate up to 150 Mbps in 802.11n mode

·Frame aggregation (TX/RX A-MPDU, RX A-MSDU)

·0.4 us guard interval

·Operating channel center frequency range: 2412 ~ 2484 MHZ


Full-touch wired controller


1.Power supply: DC12±20%

2.Operating Temperature Range: -10℃~60℃

3.Humidity Requirements for Controller Usage: 5-90%

4.Storage temperature range:  -20℃~60℃

5.Communication circuit:  RS485, Modbus communication protocol

6.Rated power: 3W

7.Overall dimensions: 86mm*86mm*11mm (wall-exposed part)

8.Mounting hole distance: 60mm

9.WIFI module:

·802.11 b/g/n

·Data rate up to 150 Mbps in 802.11n mode

·Frame aggregation (TX/RX A-MPDU, RX A-MSDU)

·0.4 us guard interval

·Operating channel center frequency range: 2412 ~ 2484 MHZ


Segment Display Wired Controller


1.Power supply: DC12±20%

2.Operating Temperature Range: -10℃~60℃

3.Humidity Requirements for Controller Usage: 5-90%

4.Storage temperature range: -20℃~60℃

5.Communication circuit: RS485, Modbus communication protocol

6.Rated power: 3W

7.Overall dimensions: 86mm*86mm*11mm (wall-exposed part)

8.Mounting hole distance: 60mm

9.WIFI module:

·802.11 b/g/n

·Data rate up to 150 Mbps in 802.11n mode

·Frame aggregation (TX/RX A-MPDU, RX A-MSDU)

·0.4 us guard interval

·Operating channel center frequency range: 2412 ~ 2484 MHZ


Centralized Controller


1.Temperature display accuracy: 0.1 ℃

2.Temperature setting range: -20~60 ℃

3.Operating temperature: -20~65 ℃

4.Operating humidity: 5~90%

5.Power supply: DC12V-24V±20%

6.Shell material: Middle frame: ABS+PC plastic / Aluminum alloy;

Back cover: ABS+PC plastic;

Touch screen: Tempered glass

7.Overall dimensions: 175mm*110mm*12.8 mm (wall-exposed part)

8.Mounting hole distance: 60mm


Mainboard for inverter modularzed units


1.Power supply: AC220±15%

2.Operating Temperature Range: -30℃~70℃

3.Humidity Requirements for Controller Usage: 50/60Hz

4.Storage temperature range: -30℃~70℃;

5.Digital Output: 16 channels;

6.Digital Input: 14 channels;

7.Analog Output: 4 channels 0-10V output;

8.Analog Input: 26 channels (2 channels 0-10V input, 2 channels 4-20mA input);

9.Expansion Valve: 6 channels;

10.Communication Interface: 3 channels RS485.

Control solution for inverter water-sourced heat pumps


1.Power supply: AC220±15%

2.Operating Temperature Range: -30℃~70℃;

3.Humidity Requirements for Controller Usage: 5-95%

4.Storage temperature range: -30℃~70℃;

5.Digital Output: 8 channels;

6.Digital Input: 7 channels;

7.Analog Input: 12 channels;

8.Expansion Valve: 2 channels;

9.Communication Interface: 3 channels RS485.


Mainboard for outdoor VRF units


1.Power supply: AC220±15%

2.Operating Temperature Range: -30℃~70℃;

3.Humidity Requirements for Controller Usage: 5-95%

4.Storage temperature range: -30℃~70℃;

5.Digital Output: 14 channels;

6.Digital Input: 7 channels;

7.Analog Input: 16 channels;

8.Expansion Valve: 3 channels;

9.Communication Interface: 3 channels RS485.



Mainboard for VRF indoor units


1.Power supply: AC220±15%

2.Operating Temperature Range: -30℃~70℃;

3.Humidity Requirements for Controller Usage: 5-95%

4.Storage temperature range: -30℃~70℃;

5.Digital Output: 5 channels;

6.Digital Input: 2 channels;

7.Analog Input: 4 channels;

8.Expansion Valve: 1 channels;

9.Communication Interface: 2 channels RS485.



Mainboard for inverter direct expansion

units


1.Power supply: AC220±15%;

2.Operating Temperature Range: -30℃~70℃;

3.Humidity Requirements for Controller Usage: 5-95%;

4.Storage temperature range: -30℃~70℃;

5.Digital Output: 16 channels;

6.Digital Input: 14 channels;

7.Analog Output: 4 channels 0-10V output;

8.Analog Input: 26 channels (2 channels 0-10V input, 2 channels 4-20mA input);

9.Expansion Valve: 6 channels;

10.Communication Interface: 3 channels RS485.


Mainboard for inverter air-sourced

heat pumps



1.Power supply: AC220±15%

2.Operating Temperature Range: -30℃~70℃;

3.Humidity Requirements for Controller Usage: 5-95%

4.Storage temperature range: -30℃~70℃;

5.Digital Output: 8 channels;

6.Digital Input: 7 channels;

7.Analog Input: 12 channels;

8.Expansion Valve: 2 channels;

9.Communication Interface: 3 channels RS485.




Mainboard for inverter refrigeration

units


1.Power supply: AC220±15%

2.Operating Temperature Range: -30℃~70℃;

3.Humidity Requirements for Controller Usage: 5-95%

4.Storage temperature range: -30℃~70℃;

5.Digital Output: 11 channels;

6.Digital Input: 7 channels;

7.Analog Input: 13 channels;

8.Expansion Valve: 2 channels;

9.Communication Interface: 3 channels RS485.


Mainboard for inverter heat recovery

units


1.Power supply: AC220±15%

2.Operating Temperature Range: -30℃~70℃;

3.Humidity Requirements for Controller Usage: 5-95%

4.Storage temperature range: -30℃~70℃;

5.Digital Output: 8 channels;

6.Digital Input: 7 channels;

7.Analog Input: 12 channels;

8.Expansion Valve: 2 channels;

9.Communication Interface: 3 channels RS485.


Mainboard for inverter dehumidifiers


1.Power supply: AC220±15%

2.Operating Temperature Range: -30℃~70℃;

3.Humidity Requirements for Controller Usage: 5-95%

4.Storage temperature range: -30℃~70℃;

5.Digital Output: 6 channels;

6.Digital Input: 7 channels;

7.Analog Input: 10 channels;

8.Expansion Valve: 2 channels;

9.Communication Interface: 2 channels RS485,2 channels UART.


Single-Phase 6HP Compressor drive board


Rated Operating Voltage (V): Single-phase AC220VAC

Input Voltage Range (V): 175-265VAC

Power Input Frequency (Hz): 50/60±5Hz

Maximum Allowable Input Current (A): 30A (RMS)

Maximum Allowable Output Current (A): 25A (RMS)

Motor Control Mode: Sensorless Vector Control

Motor Speed Range: 600~6000rpm

Motor Operating Frequency Fluctuation: ±1Hz

DC Bus Voltage: 380±5V @ PFC On

Maximum Operating Efficiency: >95%

Input Power Factor: 0.98 @ PFC On

Communication Method: 485/UART

Operating Environment：

Storage Temperature Range: -30°C~70°C

Operating Temperature Range: -30°C~60°C

Relative Humidity: 10%~95% (non-condensing)

Maximum Altitude: ≤2000m


Three-Phase 6HP Compressor drive board


Power Supply Specifications

Rated Voltage: Three-Phase AC 380V/50Hz

Operating Voltage Range: 320V~460V

Maximum Input Power: 8kW

Maximum Input Current: 14A (RMS)

Maximum Output Current: 16A (RMS)

Speed Control Parameters

Speed Regulation Range: 15Hz~100Hz (900rpm~6000rpm)

Speed Control Accuracy: ±1Hz

Control Method: Sensorless Vector Control

Compatible Compressors

Compatible with Hitachi, Panasonic, GMCC, Highly and

other leading brands

Thermal Management

Cooling Method: Forced Air Cooling / Refrigerant Heat Dissipation

Environmental Specifications

Storage Temperature Range: -30°C~70°C

Operating Temperature Range: -30°C~60°C

Relative Humidity: 10%~95% (non-condensing)

Maximum Altitude: ≤2000m


Three-Phase 10HP Compressor drive board


Power Supply Specifications

Rated Voltage: Three-Phase AC 380V/50Hz

Operating Voltage Range: 320V~460V

Maximum Input Power: 14kW

Maximum Input Current: 25A (RMS)

Maximum Output Current: 25A (RMS)

Speed Control Parameters

Speed Regulation Range: 15Hz~100Hz (900rpm~6000rpm)

Speed Control Accuracy: ±1Hz

Control Method: Sensorless Vector Control

Compatible Compressors

Compatible with Hitachi, Panasonic, Emerson and other leading brands

Thermal Management

Cooling Method: Forced Air Cooling

Environmental Specifications

Storage Temperature Range: -30°C~70°C

Operating Temperature Range: -30°C~60°C

Relative Humidity: 10%~95% (non-condensing)

Maximum Altitude: ≤2000m


Three-Phase  16HP Compressor drive board


Power Supply

Rated Voltage: Three-Phase AC 380V/50Hz

Operating Voltage Range: 320V~460V

Maximum Input Power: 17kW

Maximum Input Current: 30A (RMS)

Maximum Output Current: 31A (RMS)

Speed Control

Frequency Range: 15Hz~120Hz (900rpm~7200rpm)

Speed Accuracy: ±1Hz

Control Method: Sensorless Vector Control

Compatible Compressors

Compatible with Hitachi, Panasonic and other brands

Cooling System

Cooling Method: Forced Air Cooling / Refrigerant Heat Dissipation

Environmental Specifications

Storage Temperature: -30°C~70°C

Operating Temperature: -30°C~60°C

Humidity: 10%~95% (non-condensing)

Altitude: ≤2000m

Three-Phase 20HP Compressor drive board


Power Supply

Rated Voltage: Three-Phase AC 380V/50Hz

Operating Voltage Range: 320V~460V

Maximum Input Power: 22kW

Maximum Input Current: 40A (RMS)

Maximum Output Current: 40A (RMS)

Speed Control

Speed Range: 15Hz~120Hz (900rpm~7200rpm)

Speed Accuracy: ±1Hz

Control Method: Sensorless Vector Control

Compatible Compressors

Compatible with Hitachi, Panasonic, Danfoss, GMCC and other brands

Cooling System

Cooling Method: Forced Air Cooling / Refrigerant Heat Dissipation

Environmental Conditions

Storage Temperature: -30°C~70°C

Operating Temperature: -30°C~60°C

Humidity Range: 10%~95% (non-condensing)

Altitude: ≤2000m

Three-Phase  25HP Compressor drive board


Power Supply Specifications

Rated Voltage: Three-Phase AC 380V/50Hz

Operating Voltage Range: 320V~460V

Maximum Input Power: 30kW

Maximum Input Current: 49A (RMS)

Maximum Output Current: 50A (RMS)

Speed Control Parameters

Speed Regulation Range: 15Hz~120Hz (900rpm~7200rpm)

Speed Control Accuracy: ±1Hz

Control Method: Sensorless Vector Control

Compatible Compressors

Compatible with Hitachi, Panasonic, Danfoss and other leading brands

Thermal Management

Cooling Method: Forced Air Cooling / Refrigerant Heat Dissipation

Environmental Specifications

Storage Temperature Range: -30°C~70°C

Operating Temperature Range: -30°C~60°C

Relative Humidity: 10%~95% (non-condensing)

Maximum Altitude: ≤2000m

Three-Phase  30HP Compressor drive board


Power Supply Specifications

Rated Voltage: Three-Phase AC 380V/50Hz

Operating Voltage Range: 320V~460V

Maximum Input Power: 40kW

Maximum Input Current: 70A (RMS)

Maximum Output Current: 68A (RMS)

Speed Control Parameters

Speed Regulation Range: 15Hz~120Hz (900rpm~7200rpm)

Speed Control Accuracy: ±1Hz

Control Method: Sensorless Vector Control

Compatible Compressors

Compatible with Hitachi, GMCC and other leading brands

Thermal Management

Cooling Method: Forced Air Cooling / Refrigerant Heat Dissipation

Environmental Specifications

Storage Temperature Range: -30°C~70°C

Operating Temperature Range: -30°C~60°C

Relative Humidity: 10%~95% (non-condensing)

Maximum Altitude: ≤2000m

Single-phase 1kW DC fan drive controller


Rated power supply: Single-phase AC 220V/50Hz

Operating voltage range: 187V~264V

Maximum input power: 1kW

Maximum input current: 5A (RMS)

Maximum output current: 4A (RMS)

Speed regulation range: 75~1050rpm

Speed regulation accuracy: ±30 rpm

Control method: With position sensor detection control

Matching motor model: Panasonic motor DMSBA01GX01 and

similar models

Cooling method: Forced air cooling

Power module: Mitsubishi IPM module

Storage temperature range: -30℃~70℃

Operating ambient temperature range: -25℃~60℃

Operating humidity range: 10%~95% (no frosting and condensation)

Altitude: Less than 2000 meters


Three-Phase  2.2kW DC fan drive controller


Rated power supply: Three-phase 380V/50Hz

Operating voltage range: 380V±15%

Maximum input power: 2.2kW

Maximum input current: 6A (RMS)

Maximum output current: 5A (RMS)

Speed regulation range: 300-900rpm

Speed regulation accuracy: ±30 rpm

Control method: Sensorless vector control

Matching motor model: DC variable frequency fan

Cooling method: Forced air cooling

Storage temperature range: -30℃~70℃

Operating ambient temperature range: -25℃~60℃

Operating humidity range: 10%~95% (no frosting and condensation)

Altitude: Less than 2000 meters

BAS gateway


1. Interface: RS485, Ethernet,USB,SIM,TF, DI, DO, etc.

2. Operating voltage: DC 9~24V；

3. power consumption: 650mA@24V；

4. Wireless network: GSM/GPRS/EDGE/CDMA2000/

EVDO/WCDMA/TD-SCDMA/

LTE-FDD/LTE-TDDIPv4/

TCP/UDP；

5. Network protocol: IPv4/TCP/UDP；

6. Hardware upgrade: OTA；

Operating Environment:

Storage Temperature Range: -40°C~70°C

Operating Temperature Range: -40°C~70°C

Relative Humidity: 10%~95% (non-condensing)


4G gateway


1. Interface: RS485;2400~115200bps.

2. Operating voltage: DC 12V±20%;

3. power consumption: 650mA@12V；

4. Wireless network: LTE-FDD/LTE-TDD；

5. Network protocol: IPv4/TCP, multi-link；

6. Hardware upgrade: OTA；

Operating Environment:

Storage Temperature Range: -40°C~70°C

Operating Temperature Range: -30°C~70°C

Relative Humidity: 10%~95% (non-condensing)

4G integrate gateway


1. Interface: RS485;2400~115200bps.

2. Operating voltage: DC 12V±20%;

3. power consumption: 650mA@12V；

4. Wireless network: LTE-FDD/LTE-TDD；

5. Network protocol: IPv4/TCP, multi-link；

6. Hardware upgrade: OTA；

Operating Environment:

Storage Temperature Range: -40°C~70°C

Operating Temperature Range: -30°C~70°C

Relative Humidity: 10%~95% (non-condensing)

4G Wired controller


1.Power supply: DC12±20%

2.Operating Temperature Range:  -10℃~60℃

3.Humidity Requirements for Controller Usage: 5-90%

4.Storage temperature range:  -20℃~60℃

5.Communication circuit: RS485, Modbus communication protocol

6.Rated power: 3W

7.Overall dimensions: 86mm*86mm*10mm (wall-exposed part)

8.Mounting hole distance: 60mm

9.Wireless network: LTE-FDD/LTE-TDD; WIFI.


Contact us

Fill in and submit the following information and our staff will contact you within 2 working days

  • Name:

  • Company:

  • Email:

  • Phone:

  • Wechat:

  • WhatsApp:

  • Country:

  • Address:

  • Submit

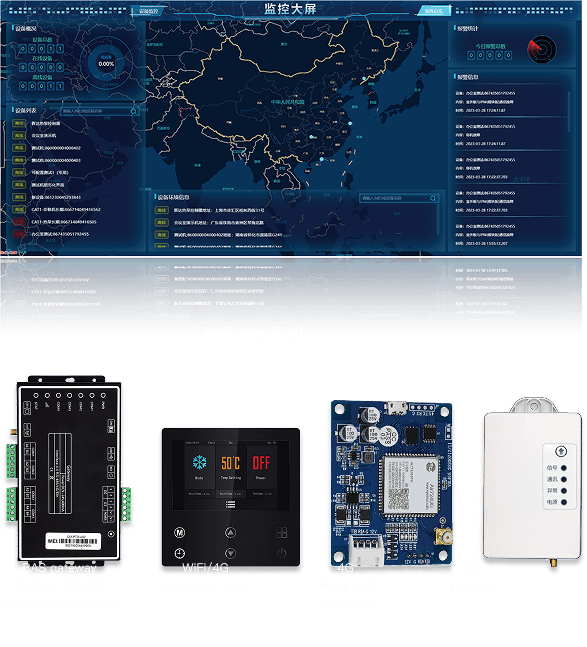

Product linkage
with other devices

IoT Platform

Gateway

Onboard

Central Control Screen

Wired Controller

IoT Platform
  • Exhibition hall display: large screen display;
  • User-side device management: created projects management; single/group control; weekly/daily schedule management; fault reminder and statistical; log recording, operating (including historical) parameters viewing;
  • Manufacturer-level equipment management: remote upgrade (OTA); permission management; protocol configuration management; warning management; fault analysis, historical data exporting;
  • Collaboration of multi systems: commissioning software; ERP system, MES systems; after-sales system; cloud to cloud integration of multiple platforms.

WIFI/4G Wired Controller

Item Segment controller Color controller Full-touch controller
Size 3.5 inch 2.8 inch 4.0 inch
Displayed contents Customizable Customizable (UI alterable) Customizable (UI alterable)
Panel color Black, white Black, white White
Power interface 12V 12V 12V
Interaction mode Touch button Touch button Touch screen
4G
gateway
Item
Description
BAS
gateway
Item
Description
Hardware

Interface

Operating voltage

Operating power consumption

Peak power consumption

Operating temperature

Storage temperature

Size

SIM

Antenna

RS485:2400~115200bps

DC 12V+20%

40mA@12V

650mA@12V

-25°C~85°℃/p>

-40°C~90°℃/p>

50*65*15mm

eSIM/SIM

SMA/Disc

Hardware

Interface

Operating voltage

Operating power consumption

Peak power consumption

Operating temperature

Storage temperature

Size

SIM

Antenna

RS485, Ethernet,USB,SIM,TF, DI, DO, etc.

DC 9~24V

400mA@24V

650mA@24V

-40°C~85℃/p>

-40°C~85℃/p>

178*115*32mm

eSIM/SIM

4G

Software

Wireless network

Network protocol

Hardware upgrade

User configuration

Heartbeat packet

LED indicator

Data reporting

LTE-FDD/LTE-TDD

IPv4/TCP, multi-link

OTA

TCP, message, 485

Changeable cycle

4*LED

Changeable reporting strategy

Software

Wireless network

Network protocol

Hardware upgrade

User configuration

Data collection

GSM/GPRS/EDGE/CDMA2000/ EVDO/WCDMA/TD-SCDMA/ LTE-FDD/LTE-TDDIPv4/ TCP/UDP

IPv4/TCP/UDP

OTA

USB

Customized

图片展示

Products





Solutions

About Us

Contact Us

 Get in touch

图片展示

products

Solutions

About Us

Contact Us

Get in touch

Add WeChat friend to learn more about the product
Use Enterprise WeChat
"Scan" to join the group chat
Copy success!
Add WeChat friend to learn more about the product
I see.
